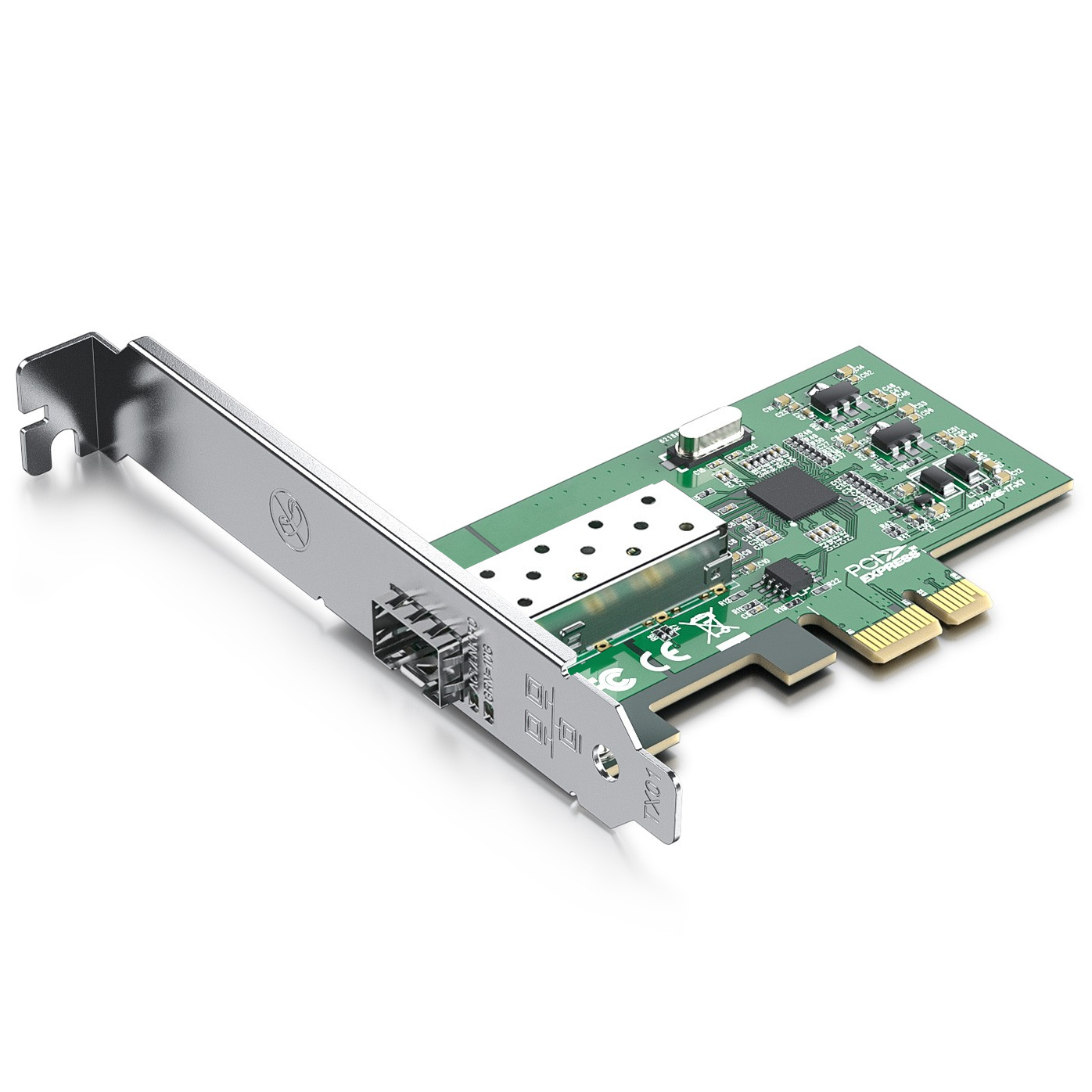

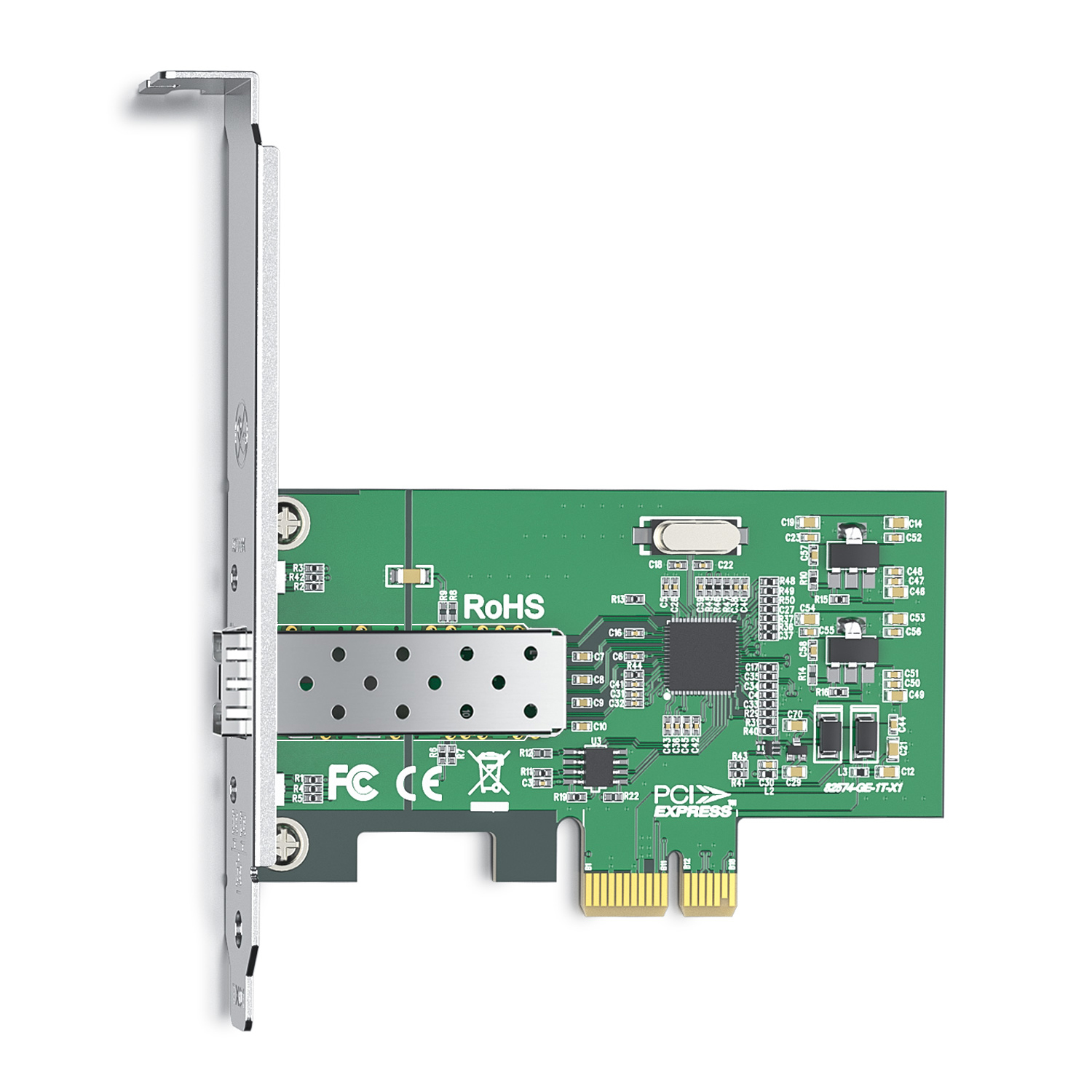

Name: 1000Base-T PCIe Server Grade NIC SFP PCIe x1 Network Adapter Card
SKU: GOEP9660
Availability: OutOfStock

Available for instant purchase from authorized HCX distributors. ¹

Buy Now

Contact Sales

Extends any server, desktop workstation, PC or PCIe upgradable AIO NAS networking capabilities
Intel® i210-AS chipset
Single SFP 10/100/1000Base-T IEEE 802.3 compliant port
10/100/1000Mbps data rate auto-negotiation and full duplex operation

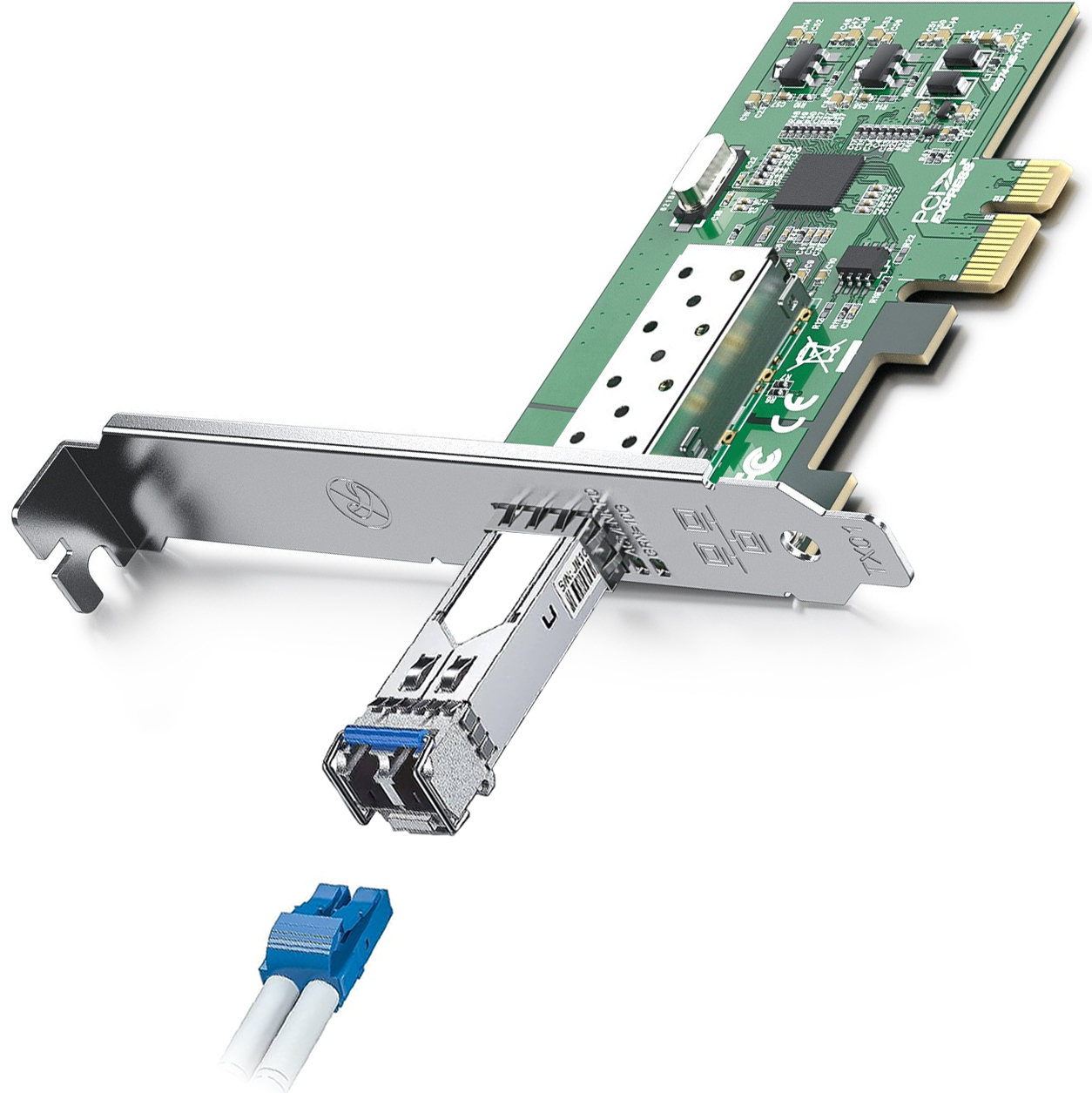

Compatible with Multi-mode Gigabit 1000SX transceivers for fiber connections up to 500 meters and Single Mode Gigabit 1000LX/1000BX WDM transceivers for long-range fiber links
Compatible with most NOS (Network Operating Systems) including Linux, Windows® 7/8/8.1/10/11 (32/64bits), Windows Server® 2008/2012/2016/2019 (64bits) and Vmware® Esxi 5/6/7
Includes both full-height and low-profile brackets for installation in standard workstation and PC cases as well as 2U, 3U and 4U servers

Description

Technical Specifications
Product	GOEP9660
Bus Type	PCI Express rev 2.1

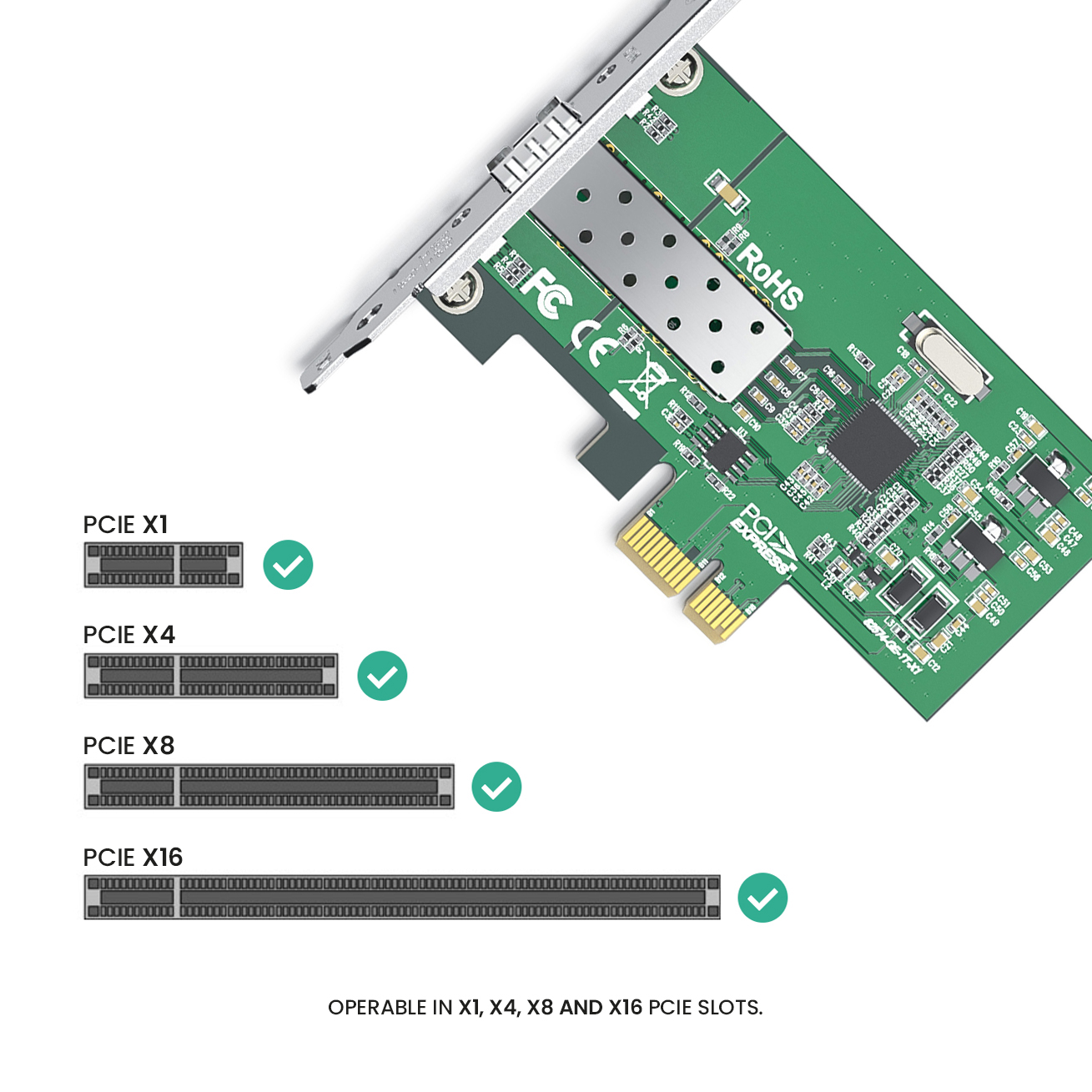

Bus Width	x1 Lane PCI Express (2.5GT/s), operable in x1, x2, x4, x8, x16 slots
Interfaces	Gigabit (10/100/1000Base-T) SFP connector
Chipset	Intel® i210-AS (WGI210AS)
Indicators	ACT/LINK: Green/Green
Power Requirements	15W
Dimensions	120 x 106 x 22 mm
Weight	0.042 kg
Compatibility
Operating System Support	Windows® 7/8/8.1/10/11 (32/64bits) Windows Server® 2008/2012/2016/2019 (64bits) Centos/RHEL 6/7/8 Ubuntu 16/18/19/20/22 Debian 9/10/11 FreeBSD 10/11/12 SLSE 11/12 Vmware® Esxi 5/6/7
IEEE Support	802.3z, 802.3, 802.3x, 1588, 802.3az, 802.1q
Additional Features	Mini GBiC transceiver support 1000SX Multi mode, 1000LX Single mode, 1000BX Single mode WDM Receive-side scaling (RSS) Jumbo Frames up to 9K Checksum offloading Flow Control VLAN filtering IPMI pass-through via SMBus or NC-SI
Additional Information
Regulatory Compliance	FCC Part 15 Class B, CE, RoHS
Operating Environment	Temperature: 0 ℃ to 55 ℃ Relative Humidity: 10%-90% (non-condensing)
Storage Environment	Temperature: -10℃ to 70℃ Relative Humidity: 10%-90% (non-condensing)
MTBF	>50,000h @ 25°C
Packaging
Contents	1 x GOEP9660 1000Base-T PCIe Server Grade NIC SFP PCIe x1 Network Adapter Card (with pre-installed full height bracket) 1 x Low Profile Bracket 1 x Quick Installation Guide 1 x CD-ROM (Drivers)
Dimensions	180 x 150 x 30 mm
Weight	0.150 kg

1000Base-T PCIe Server Grade NIC SFP PCIe x1 Network Adapter Card
