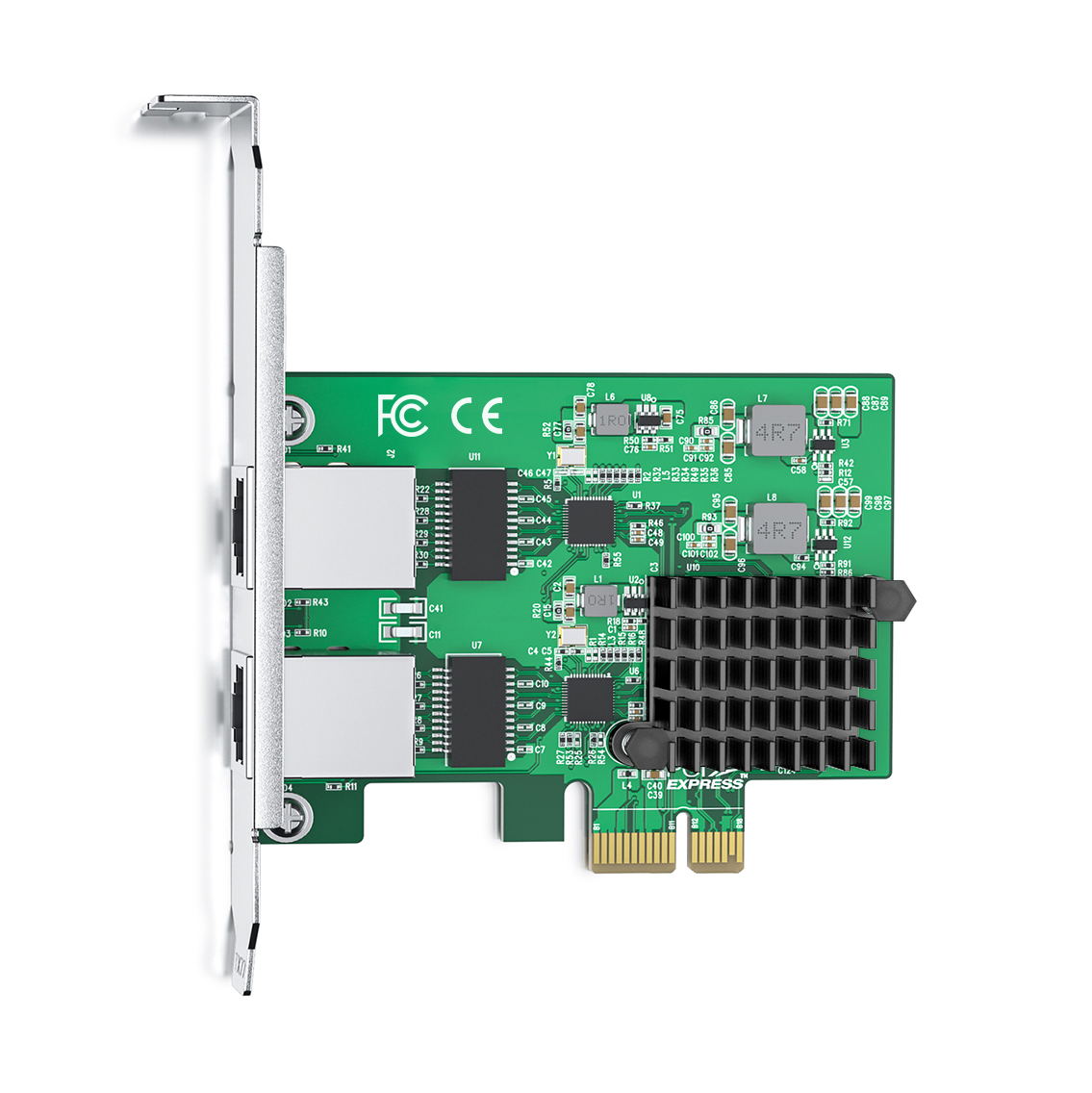

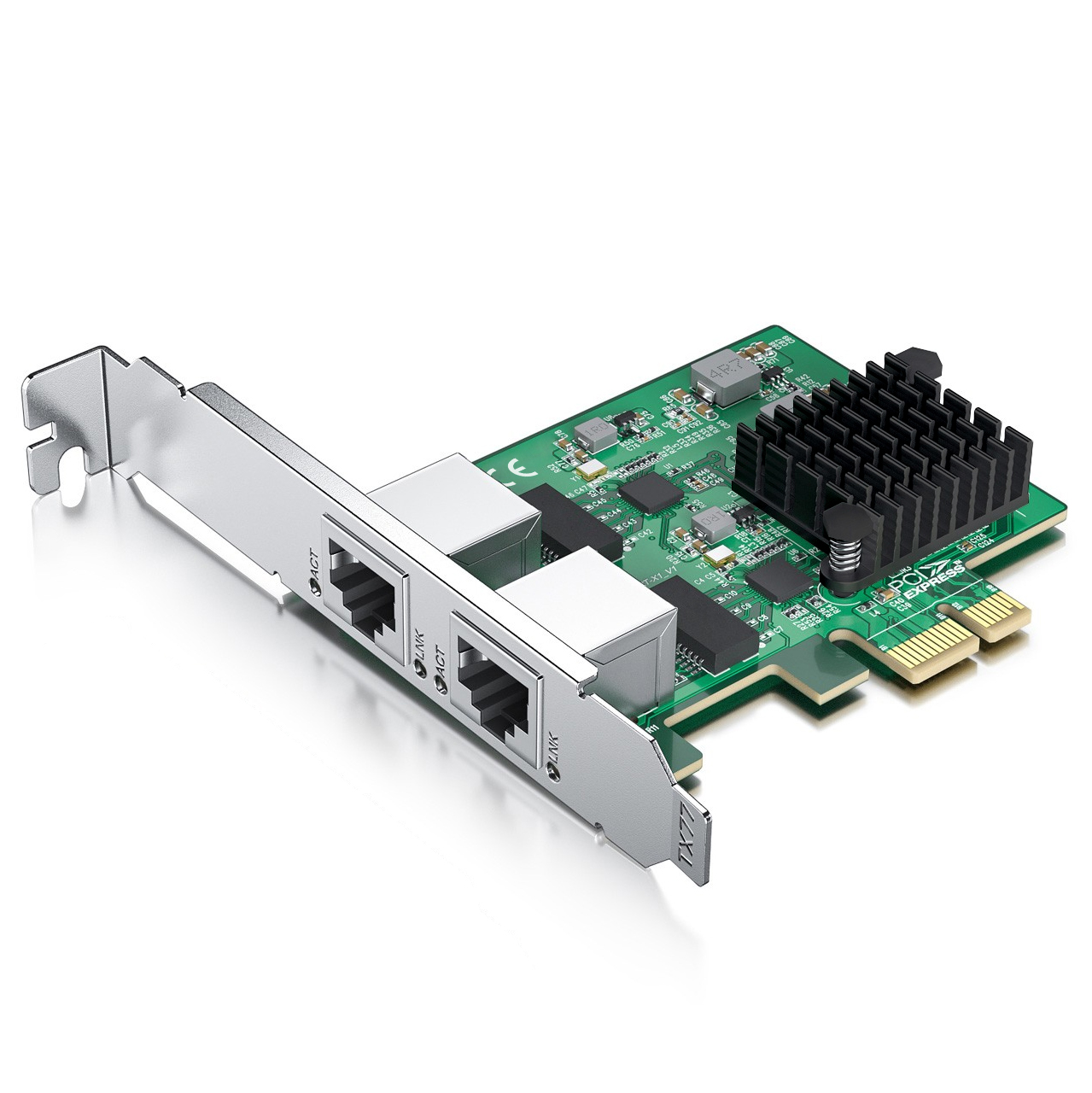

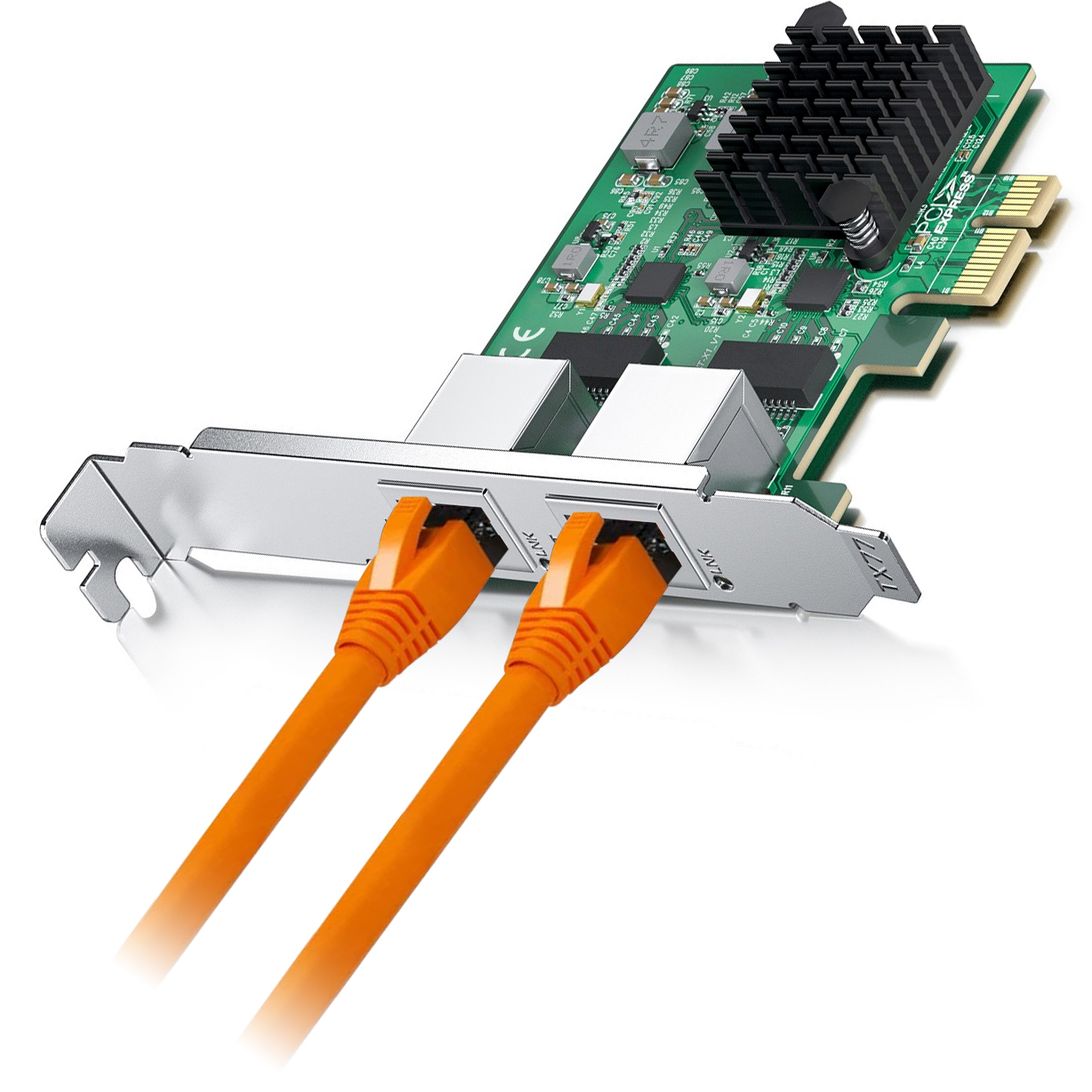

Name: Dual 1000Base-T PCIe Server Grade NIC 2x RJ45/Ethernet PCIe x1 Network Adapter Card
SKU: GOEP9675
Availability: OutOfStock

Available for instant purchase from authorized HCX distributors. ¹

Buy Now

Contact Sales

Extends any server, desktop workstation, PC or PCIe upgradable AIO NAS networking capabilities
Intel® 82571EB chipset
Dual RJ45 10/100/1000Base-T IEEE 802.3 compliant ports
10/100/1000Mbps data rate auto-negotiation per RJ45 port and full duplex operation
Compatible with most NOS (Network Operating Systems) including Linux, Windows® 7/8/8.1/10/11 (32/64bits), Windows Server® 2008/2012/2016/2019 (64bits) and Vmware® Esxi 5/6/7
Includes both full-height and low-profile brackets for installation in standard workstation and PC cases as well as 2U, 3U and 4U servers

Description

Technical Specifications
Product	GOEP9675
Bus Type	PCI Express rev 1.0a

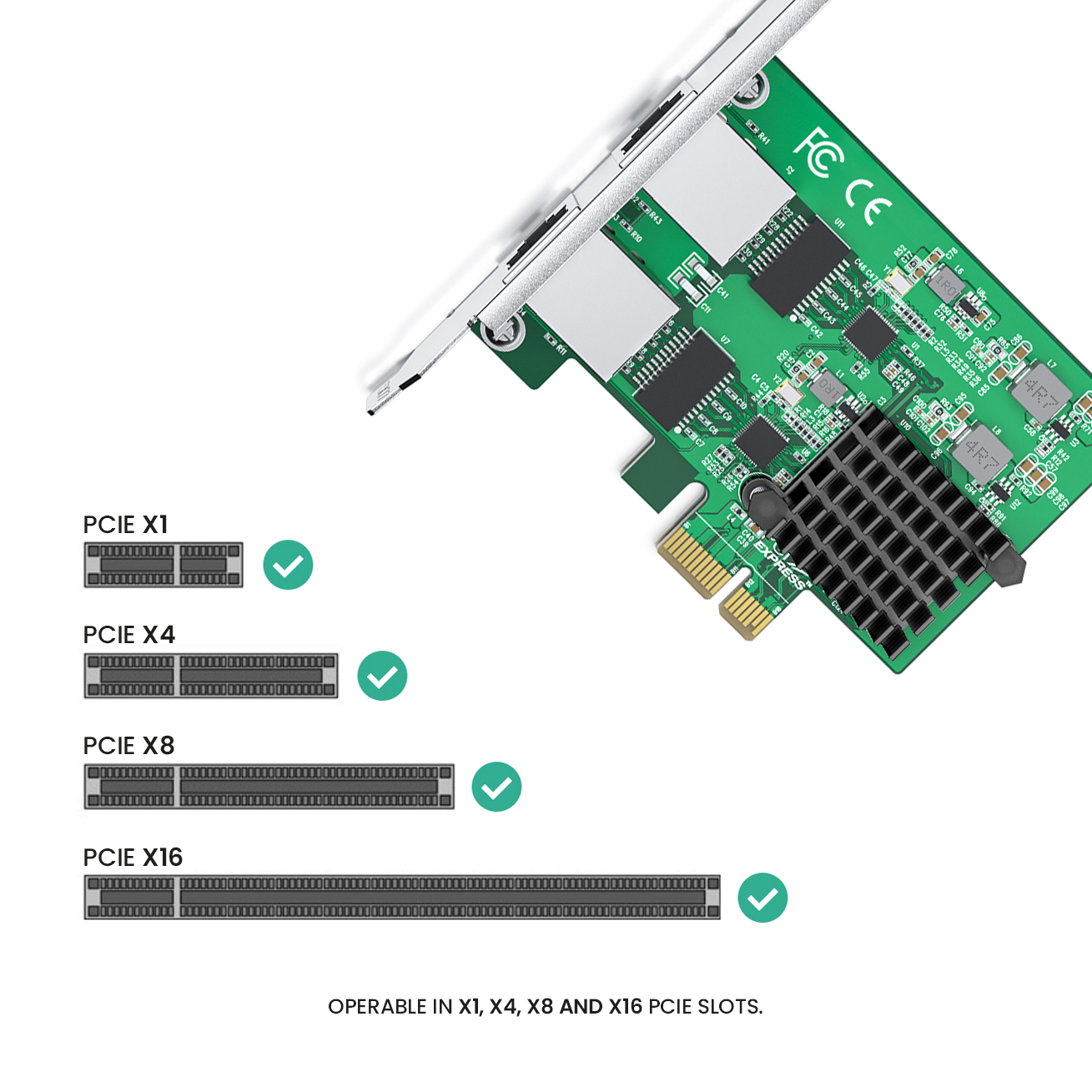

Bus Width	x1 Lane PCI Express (2GT/s), operable in x1, x2, x4, x8, x16 slots
Interfaces	2x Gigabit (10/100/1000Base-T) RJ45 connector
Chipset	Intel® 82571EB
Indicators	ACT/LINK A 1000Mbps: Orange 100Mbps: Green 10Mbps: OFF
Indicators	ACT/LINK B 1000Mbps: Orange 100Mbps: Green 10Mbps: OFF
Power Requirements	5W
Dimensions	120 x 89 x 22 mm
Weight	0.065 kg
Compatibility
Operating System Support	Windows® 7/8/8.1/10/11 (32/64bits) Windows Server® 2008/2012/2016/2019 (64bits) Centos/RHEL 6/7/8 Ubuntu 16/18/19/20/22 Debian 9/10/11 FreeBSD 10/11/12 SLSE 11/12 Vmware® Esxi 5/6/7
IEEE Support	802.1p, 802.1Q, 802.2, 802.3ac, 802.3az, 802.3x, 802.3z, 802.3ad
Additional Features	EEPROM-SPI and single EEPROM support Advanced cable diagnostics
Additional Information
Regulatory Compliance	FCC Part 15 Class B, CE, RoHS
Operating Environment	Temperature: 0 ℃ to 55 ℃ Relative Humidity: 10%-90% (non-condensing)
Storage Environment	Temperature: -10℃ to 70℃ Relative Humidity: 10%-90% (non-condensing)
MTBF	>50,000h @ 25°C
Packaging
Contents	1 x GOEP9675 Dual 1000Base-T PCIe Server Grade NIC 2x RJ45/Ethernet PCIe x1 Network Adapter Card (with pre-installed full height bracket) 1 x Low Profile Bracket 1 x Quick Installation Guide 1 x CD-ROM (Drivers)
Dimensions	180 x 150 x 30 mm
Weight	0.170 kg

Dual 1000Base-T PCIe Server Grade NIC 2x RJ45/Ethernet PCIe x1 Network Adapter Card
